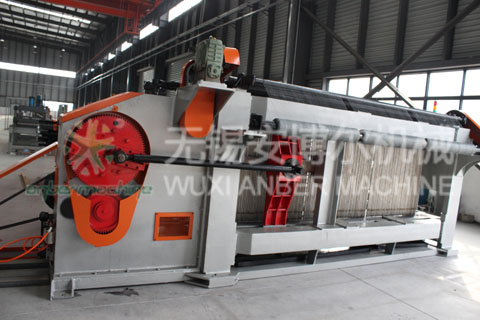

Bobbion machine

Bobbion machine

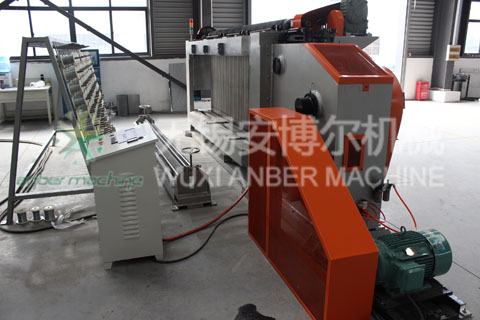

Hexagonal wire netting machine

Hexagonal wire netting machine

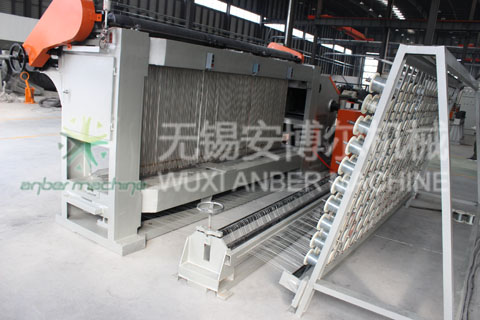

Chicken mesh netting machine

Chicken mesh netting machine

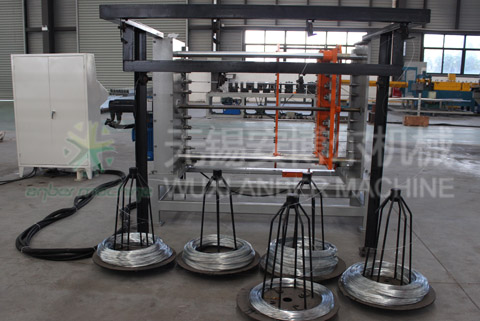

Spiral coiling machine

Spiral coiling machine

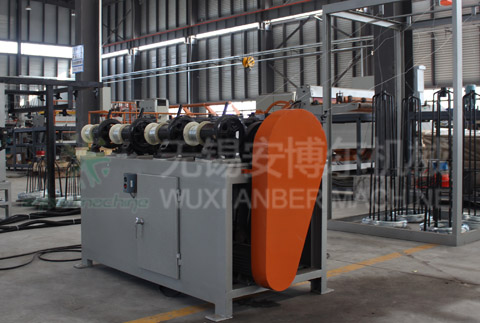

Bobbin making machine

Bobbin making machine

  • 01. Description of hexagonal wire netting machine
  • Hexagonal mesh machine, also named chicken mesh machine, is the special equipment to produce the hexagonal wire netting mesh. The machine has features of reasonable design, simple structure, stable operation, good performance, convenient repair.
    Typical application of hexagonal wire netting mesh: fence mesh for feeding of poultry, such as chicken, duck, goose, rabbit, etc;
  • 02. Machine composition
  • 1. Hexagonal wire netting machine
    2. Bobbin frame
    3. Recoiling machine(with tension device)
    4. Double-layer spiral coiling machine
    5. Wire pay off for spiral coiling machine
    6. Bobbin making machine
    7. Wire pay off frame for bobbin machine
  • 03. Main parameter
  • Model
    Spec.
    Mesh size
    (mm)
    Max. width
    (m)
    Wire dia.
    (mm)
    Twist number
    Main shaft speed
    (r/min)
    Power
    (kw)
    Theory speed
    (m/h)
    LNWL-1015
    1/2’
    15x18
    1200
    0.80
    3
    33
    3
    51
    LNWL-1018
    5/8’
    18x25
    0.90
    3
    67
    LNWL-1022
    3/4’
    22x33
    1.20
    3/5
    83
    LNWL-1027
    1’
    27x41
    3/5
    100
    LNWL-1032
    1/1/4’
    32x52
    3/5
    122
    LNWL-1039
    1/1/2’
    39x61
    3
    142
    LNWL1055
    2’
    55x70
    3
    162
    LNWL1078
    3’
    78x86
    3/5
    194
    LNWL-2015
    1/2’
    15x18
    2200
    0.80
    3
    51
    LNWL-2018
    5/8’
    18x25
    0.90
    3
    67
    LNWL-2022
    3/4’
    22x33
    1.20
    3/5
    83
    LNWL-2027
    1’
    27x41
    1.20
    3/5
    100
    LNWL-2032
    1/1/4’
    32x52
    3/5
    122
    LNWL-2039
    1/1/2’
    39x61
    3
    142
    LNWL-2055
    2’
    55x70
    3
    162
    LNWL-2078
    3’
    78x86
    3/5
    194
    LNWL-3027
    1’
    27x41
    3000
    0.80
    3
    33
    3
    67

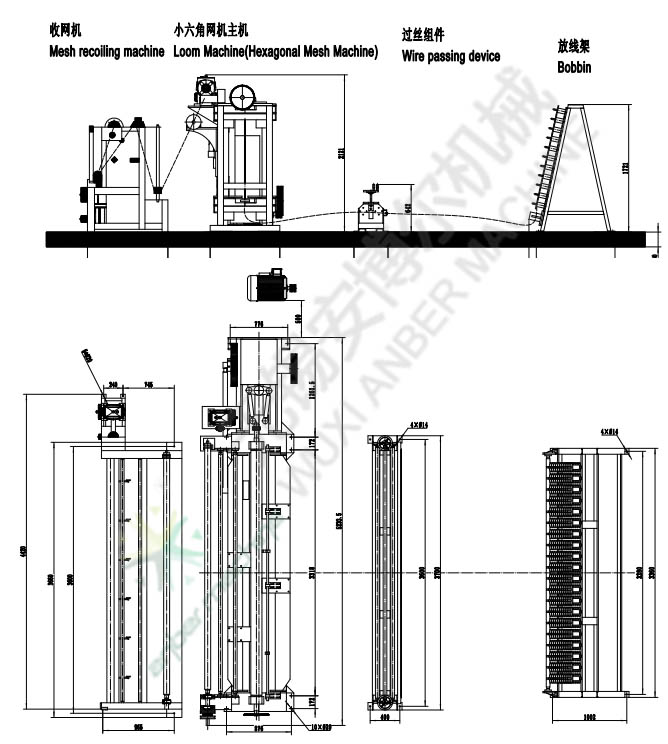

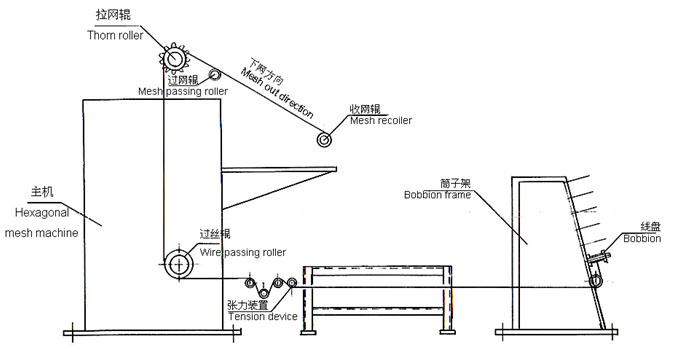

  • 04. Layout of hexagonal mesh machine
  • 05. Lubrication system
  • The lubrication system compares with motor, oil pumps, etc, there are two oiling method: automatic and timely. Start oil supplying when turn on the machine, there is an oil valve switch installed above the pump which is for timing oil supply, at least 3 times per shift. It needs lubricate manually Where there is no pipeline to lubricate, such as: oil filling hole of the carriage and the half gear, etc.
